Kelon plastic top cover plastic injection mold tooling for Hydraulic sensor parts
——
Classification: Plastic Injection Tooling
Label: injection mold components, plastic injection mold tooling
Place of Origin: | Shenzhen |
Brand Name: | CE Mold |
Certification: | ISO 9001 2015 |
Model Number: | Coperchio B1263 |
MINIMUM ORDER QUANTITY: | MOQ 1 set |
---|---|
PRICE: | 4500US$ |
PACKAGING DETAILS: | Ply wooden+steel strips |
DELIVERY TIME: | 5weeks |
PAYMENT TERMS: | T/T |
SUPPLY ABILITY: | 60 molds /month |
Product description:
STEEL: | Stavax 420 ESR | HARDNESS: | 48~52 HRC |
---|---|---|---|
PLASTIC RESIN: | PA6+GF30 | MOLD CLASS: | Class A |
CAV: | 1X1 |

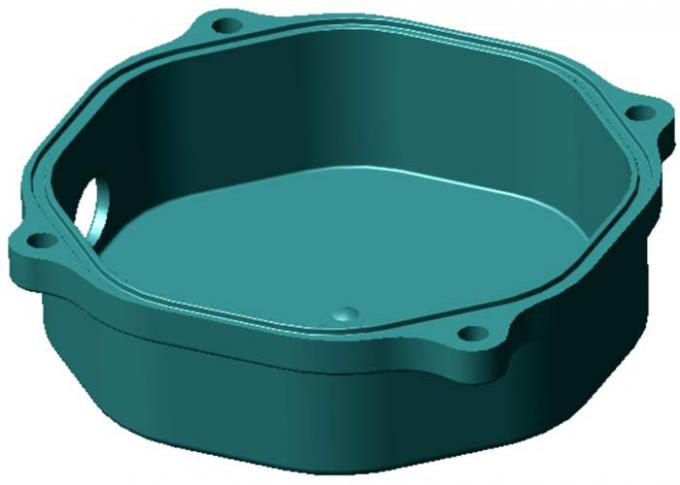

This is the plastic top cover for Sensor parts. Hydraulic sensor parts. The material is special designed one to resist the high pressure liquid environment.
Mold Type | Precision Plastic injection mold |
Design software | UG, Auto CAD,Pro/E etc. |
Steel material | S50C and Stavax 420; |
Plastic production Raw material | PA6+GF30 black Kelon CET30 |
Mold base | LKM standard |
Mold runner | hot nozzle; Yudo |
Mold strandard parts | HASCO, etc. |
mold life | >500,000 shots |
Mold hot treatment | nitridation, tempering,etc. |
Mold cooling system | water cooling |
Mold surface | EDM, CNC and polishing |
Hardness of the steel | 48~50 HRC |
process | High speed CNC, standard CNC, EDM, Wire cutting, Grinder, Lathe, Milling machine, plastic injection machine |
1. This part have tight tolerance since the part need sealing around 0.05mm
2. The flatness is 0.1mm since it has something rotating in side. EP marks must less than 0.03mm below surface.
3. Being of the construction, core side no ribs in side. it is easy to have deformation in side.
4. In order to control the flatness, both core and cavity side need cooling system into the center of the inserts.
5. It is hot nozzle system with pin gate in center. We should put cooling system surround the hot nozzle and cavity. Each cooling system should be splitted. So that we can control the temperature better.
6. Thickness is big. 4~5mm so that it can resist high pressure. Also easy to have twist. Molding and mold are important to keep the flatness
